Injectable, Drug-coated Microparticles for Regenerating Bone Tissue

Large-scale injuries to bone tissue can have many causes, including traumatic injury, birth defects, or as a side effect for cancer treatment. In particular, bone defects greater than 2cm in length are termed “critically-sized” since they often cannot heal spontaneously. These large  bone injuries are often treated with autologous bone grafts, or bone tissue harvested from the patient’s own body, though these procedures are limited by donor site morbidity and a limited amount of harvestable bone. To overcome these shortcomings seen with bone grafts, our lab is seeking to develop synthetic, “off-the-shelf” systems to regenerate these large bone injuries. We are currently developing an injectable drug delivery system made from coated microparticles that can release multiple therapies in sequence to promote the growth of new blood vessels and new bone tissue. The ~10µm particles, made from the polymer poly(propylene sulfide) (PPS), can be loaded with bone-regenerating drugs during fabrication but are small enough to be injected from a syringe. These particles can also be coated with a separate vessel-regenerating drug (Figure 1A). Importantly, both the drug coating and drug-loaded particles are selectively degraded by cell-generated reactive oxygen species (ROS). This allows for sequential drug release from the injected microparticles after triggering by the local cells at the bone injury site (Figure 1B-D).

For this proposed project, the Protégé Scholar will be heavily involved in the development of these coated microparticles. The Protégé Scholar will assist in optimizing the particle coating process, measuring drug release kinetics, and evaluating the biological response of this system in preparation for future pre-clinical testing in more complex biological models

diagram of an injection going into a bone

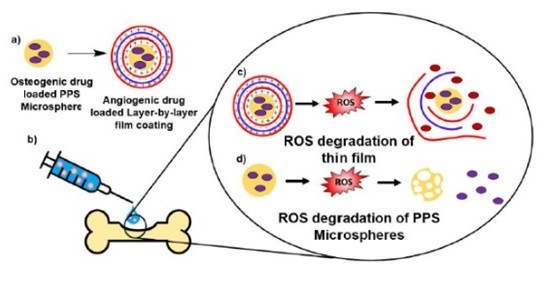

Overview of the dual therapy system. a) Synthesis of drug loaded PPS microparticles coated with drug loaded LbL thin films. b) Injection of the system into a critically-sized bone defect. c) Initial ROS-degradation of thin film and pro-angiogenic drug release, followed by d) ROS-degradation of PPS microspheres and pro-osteogenic drug release.

Director

Headshot of John Robert Martin

John Robert Martin

Assistant Professor, CEAS - Biomedical Eng

134 UCBIOSCI

513-556-6548

John R. Martin is an assistant professor in the Department of Biomedical Engineering in the College of Engineering and Applied Science at the University of Cincinnati. Dr. Martin completed his undergraduate degree at the University of Kentucky where he majored in Biosystems Engineering before obtaining a Ph.D. in Biomedical Engineering at Vanderbilt University investigating cell-degradable tissue engineering scaffolds. Following his doctoral work, he completed a postdoctoral fellowship at the Massachusetts Institute of Technology in the Department of Chemical Engineering where he researched drug delivery systems for the regeneration of craniofacial bone tissue.

Dr. Martin leads the Bioresponsive Materials Lab at UC, exploring “smart” biomaterial systems that leverage precise cell-generated signals (including reactive oxygen species and enzymatic activity) to activate biomaterial functionality and guide tissue regeneration. This interdisciplinary research integrates polymer science and materials engineering alongside pharmacology and biology to build new systems for regenerating orthopedic injuries in the clinic.
