Research

Nanomedicine for Gene and Drug Delivery

The development of nano-scaled carriers as a gene and drug delivery platform has made tremendous advances in the fight against cancer.  Despite the progress, drug resistance and metastasis remain major challenges of nanotechnology-based cancer therapeutics.  Our research aims to develop smart nano-scale carriers that can enhance the therapeutic efficacy with minimal side effects against recalcitrant drug-resistant and metastatic cancer types.

To achieve these goals, we use biocompatible and biodegradable polymeric and hybrid materials for targeted and controlled gene and drug delivery.  We employ rational design principles for multi-functional nano-scaled vehicles with active targeting and stimulus-response mechanisms to increase the specificity and efficacy of the delivery systems.  We currently focus on developing nanoparticle-based delivery systems for combination therapy using complementary and synergistic molecules for gene and chemotherapy.  Our current efforts in this area can be found below.

Targeting ligand-conjugated pH-sensitive polymeric nanoparticle for targeted and controlled drug delivery

Targeting ligand-conjugated pH-sensitive polymeric nanoparticle for targeted and controlled drug delivery

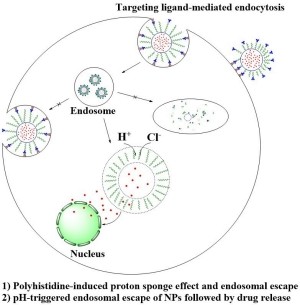

Endosomal escape of Herceptin®-conjugated PLGA-Phis-PEG NP

Endosomal escape of Herceptin®-conjugated PLGA-Phis-PEG NP

Hybrid nanoparticle for co-delivery of gene and drug

Hybrid nanoparticle for co-delivery of gene and drug

Endosomal escape of hybrid nanoparticles

Endosomal escape of hybrid nanoparticles

Polymeric nanoparticle for targeted sequential delivery of synergistic drugs

Polymeric nanoparticle for targeted sequential delivery of synergistic drugs

Environmental Catalysis for Separation of Air Pollutants from Combustion Sources

Among many air pollutants in combustion flue gas, our lab studies the reaction and separation of mercury and CO2 gases using catalysis, adsorption, and absorption.  Mercury is a toxic and persistent pollutant that bio-accumulates in the food chain, and most Americans are exposed to mercury primarily by consuming contaminated fish where mercury in the environment is transformed into more toxic methylmercury.  The consumption of methylmercury may cause neurotoxic effects, and children and particularly developing fetuses are especially susceptible to methylmercury effects.  The US EPA’s Mercury and Air Toxics Standards rule requires coal- and oil-fired power plants to use maximum available control technology to reduce the emissions of mercury and other hazardous air pollutants.  Among elemental, oxidized, and particulate-bound mercury species present in flue gas, elemental mercury (Hg(0)) is most difficult to control because of its low concentrations, low reactivity with other flue gas components via homogenous oxidation, and low solubility in water.  Therefore, the heterogeneous oxidation of Hg(0) vapor is required for separation of mercury in downstream air pollution control devices.

We aim to develop high- and low-temperature catalysts that can be used in an existing Selective Catalytic Reduction (SCR) unit and downstream after an air preheater in combustion process.  We studied a high-temperature RuO2 catalyst to be used in a SCR unit at 300-400 °C.  When we used rutile TiO2 as a catalyst support, RuO2 formed well dispersed nano-layers, giving higher Hg(0) oxidation activity over anatase TiO2support.  The RuO2/rutile TiO2 catalyst can be used at the tail end section of the selective catalytic reduction (SCR) unit for Hg(0) oxidation.  It showed excellent Hg(0) oxidation performance under sub-bituminous and lignite coal simulated flue gas conditions with low concentration of HCl or HBr gas.  The RuO2/rutile TiO2 catalyst also showed excellent resistance to SO2 under bituminous coal simulated flue gas, maintaining greater than 90% Hg(0) oxidation with ~2,000 ppmv SO2 present.  The oxidized mercury in the form of HgCl2 has a high solubility in water and can be easily be separated in wet flue gas desulfurization scrubbers.  We systematically studied the RuO2/rutile TiO2 catalyst for Hg(0) vapor oxidation in terms of synthesis, reaction mechanisms and kinetics.  Our studies in this area can be found below.

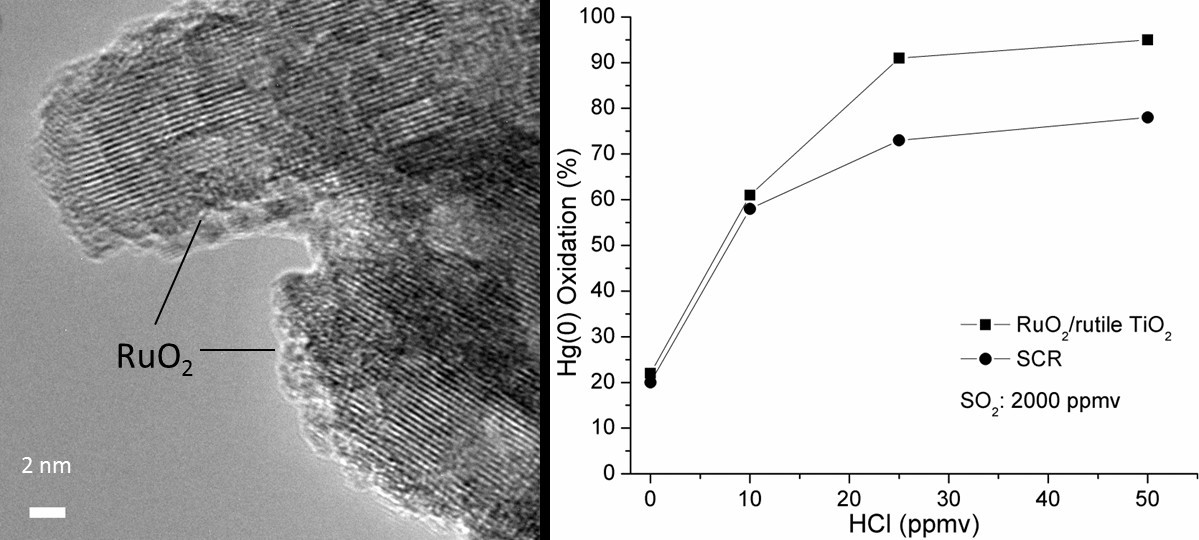

Dispersion of RuO2 over rutile TiO2 phase and catalytic Hg(0) oxidation performance

Dispersion of RuO2 over rutile TiO2 phase and catalytic Hg(0) oxidation performance

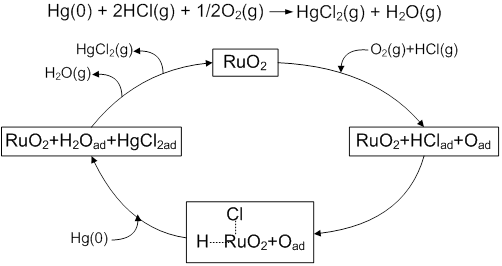

Hg(0) oxidation over RuO2 catalyst

Hg(0) oxidation over RuO2 catalyst

Comparison between model predictions and experimental data for Hg(0) conversion

Comparison between model predictions and experimental data for Hg(0) conversion

We also study the reaction mechanism and kinetics of a CuCl2-based low-temperature Hg(0) oxidation catalyst for plants without a SCR unit in a temperature window of ~50-200 °C (~120-400 °F).  We found CuCl2 to work as an excellent redox catalyst for heterogeneous Hg(0) oxidation by reducing itself to CuCl and being reoxidized back to CuCl2 with HCl and O2 gases present in typical coal combustion flue gas.  Unlike many metal oxide-based catalysts, CuCl2 also showed excellent resistance to SO2 for Hg(0) vapor oxidation.  We conducted a mechanistic study for Hg(0) oxidation with CuCl2/g-Al2O3 catalyst with high surface area.   We found that CuCl2 formed agglomerates with an increase in temperature leading to sintering effect.  Our reaction kinetic study using unsteady-state grain model showed that CuCl2 could enhance Hg(0) oxidation by lowering the activation energy barrier with the reduction of Cu(2+) to Cu(1+) and supplying thermally stable surface Cl sites following a Mars-Maessen mechanism.  Our studies in this area can be found below.

Hg(0) oxidation over CuCl2

Hg(0) oxidation over CuCl2

Grain model for reaction of Hg(0) with CuCl2

Grain model for reaction of Hg(0) with CuCl2

Model prediction of oxidation reaction rate of Hg(0) with CuCl2 at 100-180 °C

Model prediction of oxidation reaction rate of Hg(0) with CuCl2 at 100-180 °C

Adsorption for Gas Separation from Combustion Sources

Our lab also develops adsorbents for gas separation in energy and environmental applications.  We found that CuCl2-impregnated activated carbon (AC) sorbent captures Hg(0) by oxidizing it to mercuric chloride (HgCl2) followed by physical adsorption.  Therefore, we studied mercuric chloride (HgCl2) adsorption onto activated carbon (AC) sorbent by separating the physical adsorption part to determine the adsorption kinetics.  Based on the adsorption kinetics, we formulated a comprehensive model to predict HgCl2removal in the ductwork and fabric filter by AC sorbent injection.  We also studied various factors that could impact the adsorption performance and sorbent utilization, including inlet HgCl2 concentration, sorbent loading, particle size, external and pore diffusional mass-transfer resistances, residence time, filtration time, injection mode, and pressure drop.  Throughout our adsorption kinetic and modeling study, we demonstrated that for the removal in fabric filter, a discontinuous sorbent injection mode delivering the same amount of sorbent in 10% of a cleaning cycle resulted in higher removal performance and sorbent utilization.  However, at the end of the cleaning cycle, most of the sorbent capacity was not used (< 0.2%).  The pressure drop across the filter cake built by fly ash and sorbent was found to be manageable within typical operating limits.  Our studies in this area can be found below.

Schematic of HgCl2 adsorption by AC sorbent in a fabric filter

Schematic of HgCl2 adsorption by AC sorbent in a fabric filter

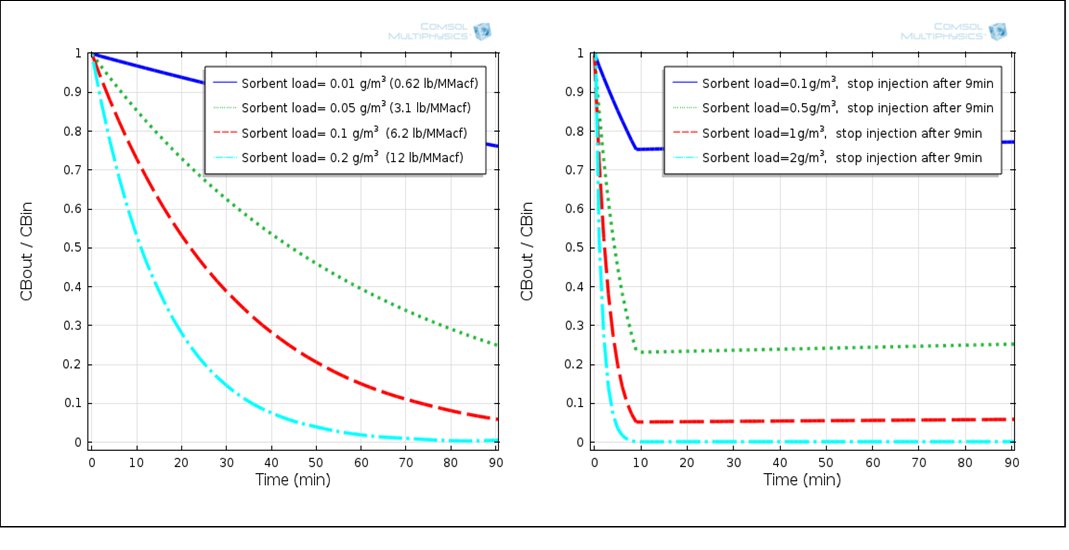

Model predictions of HgCl2 removal by continuous and discontinuous AC sorbent injection modes

Model predictions of HgCl2 removal by continuous and discontinuous AC sorbent injection modes

Microalgae for Carbon Recycle and Management of Wastewater and Energy

This project is to integrate the use of CO2 gas separated from combustion flue gas with autotrophic microalgae cultivation for water-energy nexus (i.e. neutral carbon cycling and water/energy savings).  We use NaHCO3 or Na2CO3 as a buffer chemical that can keep the dissolved inorganic carbon (DIC, CO2(aq) + HCO3-) concentration high for enhanced CO2 gas absorption and high microalgal growth kinetics.  We study the intracellular mass transfer of dissolved inorganic carbon species under high dissolved inorganic carbon flux to understand the mass transfer and photosynthesis of inorganic carbon species.  We also made a modeling effort to describe the growth kinetics of microalgae coupled with the effects of photolimitation and photoinhibition.  Our studies in this area can be found below.

Effects of dissolved inorganic carbon on autotrophic algal growth

Effects of dissolved inorganic carbon on autotrophic algal growth

Specific autotrophic growth rate under photolimitation and photoinhibition

Specific autotrophic growth rate under photolimitation and photoinhibition

Pilot-scale microalgae cultivation

Pilot-scale microalgae cultivation
