Robotics Assisted 3D Scanning of Aircraft for Reverse Engineering

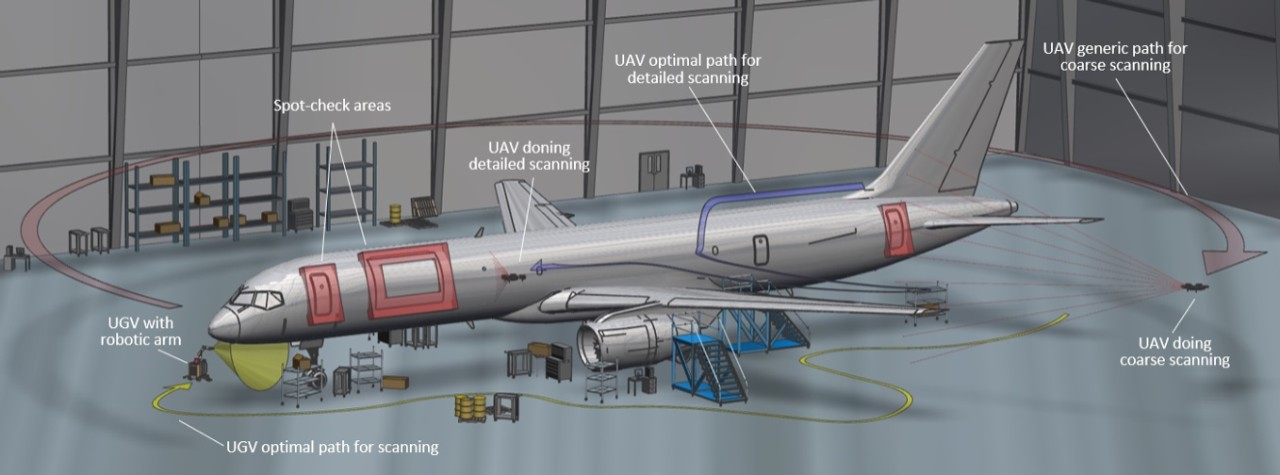

Diagram of an airplane

Description

This project aims to develop an one-stop solution of automated 3D scanning of an aircraft by applying the latest robotics, artificial intelligence, and sensing technologies. A robotic system, consisting of an unmanned aerial vehicle (UAV) with a RGB-D camera, an unmanned ground vehicle (UGV) and a manipulator equipped with a high-precision and close-range 3D scanner, is used to perform automated scanning for acquiring 3D model of an aircraft by following an optimal scanning trajectory computed by using reinforcement learning technique: Monte Carlo Tree Search. The resulting 3D model can be analyzed for identifying widespread defects, such as dents and cracks, on the surface of aircraft fuselage, wings, and other components. Such a solution makes the scanning process much more efficient and of higher quality. Further, the solution also removes the tedious, boring, and sometimes even risky human labor from the scanning work.

Methodology

A two-phase scanning method with using a high-precision indoor positioning system is proposed to meet the requirement of high accuracy for the aircraft scanning. The first phase of scanning is to reconstruct a coarse aircraft model with a consumer-grade RGB-D camera and the second phase of scanning is to reconstruct a precision aircraft model with a high-precision 3D laser scanner based on the coarse model acquired in the first phase.

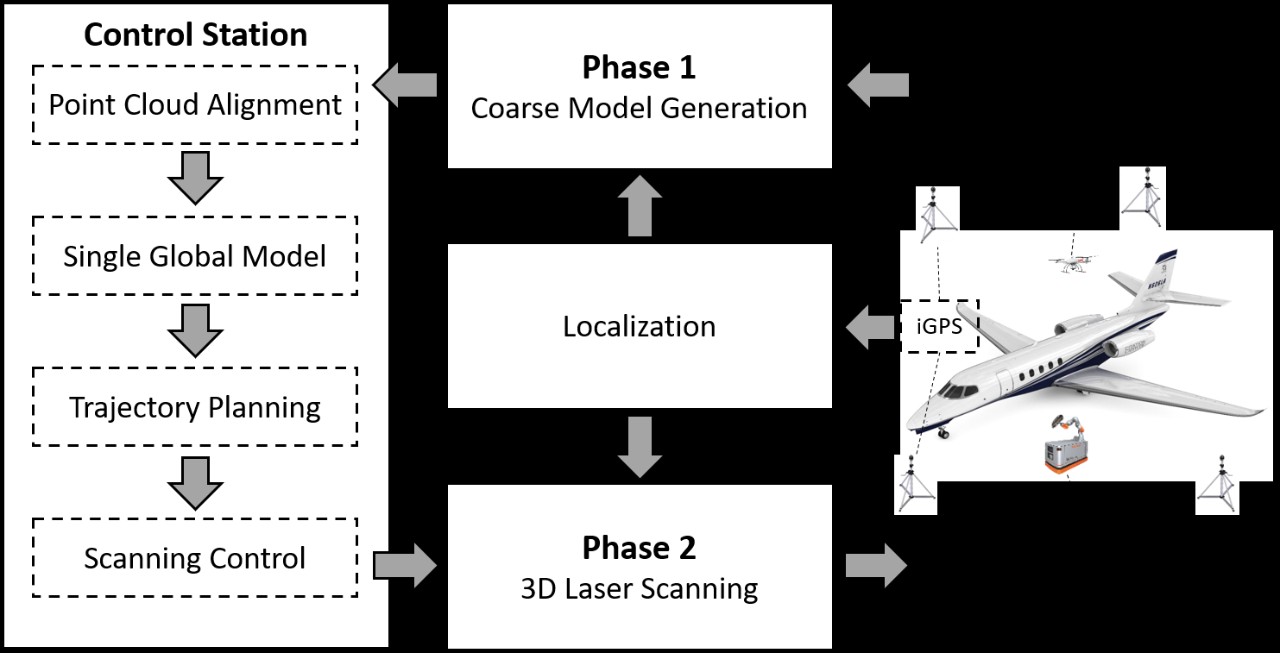

Flow chart of how the simulation works
